Body

Two-seat, two-door coupe or soft-cover convertible
Bonded aluminium structure
Aluminium, magnesium alloy, composite and steel body
Extruded aluminium door side-impact beams
Halogen projector headlamps
LED rear lamps

Engine

All-alloy, quad overhead camshaft, 32-valve, 4735 cc V8
Front mid-mounted engine, rear-wheel drive
Fully catalysed stainless steel exhaust system with active bypass valves
Compression ratio 11.3:1
Max power 313 kW (420 bhp/426 PS) at 7300 rpm
Max torque 470 Nm (346 lb ft) at 5000 rpm
Acceleration 0-60 mph in 4.7 seconds; 100 km/h (0-62 mph) in 4.9 seconds
Max speed 290 km/h (180 mph)

Transmission

Rear mid-mounted, six-speed manual gearbox
Alloy torque tube with carbon-fibre propeller shaft
Limited-slip differential
Final-drive ratio 3.909:1

Steering

Rack and pinion, power-assisted steering, 3.0 turns lock-to-lock
Column tilt and reach adjustment

Wheels & tyres

19” alloy wheels – 20-spoke diamond-turned with a silver painted finish
Front 8.5J x 19” Bridgestone Potenza 235/40 ZR19
Rear 9.5J x 19” Bridgestone Potenza 275/35 ZR19

Suspension

Front Independent double wishbones incorporating anti-dive geometry, coil springs, anti-roll bar and monotube dampers
Rear Independent double wishbones with anti-squat and anti-lift geometry, coil springs, anti-roll bar and monotube dampers

Brakes

Front Ventilated and grooved steel discs, 355 mm diameter
Rear Ventilated and grooved steel discs, 330 mm diameter
Radial-mounted four-piston monobloc calipers
Dynamic Stability Control (DSC)
Anti-lock Braking System (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Positive Torque Control (PTC)
Traction Control

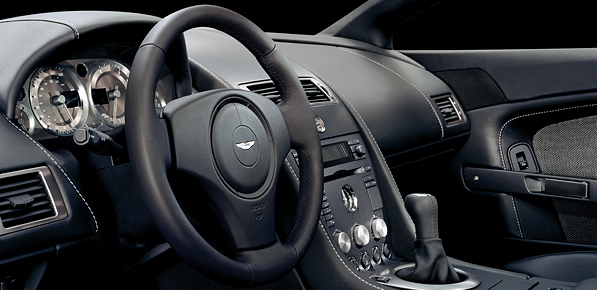

Interior

Full grain leather interior
Alcantara headlining
Gunmetal alloy facia trim and Graphite centre console finish
Electrically adjustable seats
Dual-stage driver/passenger front airbags
Side airbags
Heated rear screen
Automatic temperature control
Organic Electroluminescent (OEL) displays
Trip computer
Glass ECU
LED map-reading lights
Rear parking sensors
Tyre-pressure monitoring1
Alarm and immobiliser
Remote-control central door locking and boot release
Battery disconnect switch

In-car entertainment

160 W Aston Martin Audio System with six-CD autochanger
Integrated Apple iPod connector4
USB connectors with Waveform Audio Format (WAF), Windows Media Player (WMA) and MPEG (MP3) audio file compatibility

Options

Sportshift5 automated manual transmission
Hard Disk Drive (HDD) satellite navigation system1
High-intensity discharge headlamps (main beam)
Satellite radio system (USA only)
Piano Black facia trim
Personalised sill plaques
Auto-dimming interior rear-view mirror1
Auto-dimming interior rear-view mirror with garage door opener1
Alarm upgrade (volumetric and tilt sensors)
Memory seats and exterior mirrors (three positions)
Heated seats
Front parking sensors
Tracking device2
First-aid kit
Ashtray and cigar lighter
Cruise control
Bluetooth telephone preparation
Powerfold exterior mirrors
Boot-mounted umbrella
Battery conditioner
700 W Aston Martin Premium Audio System with Dolby® Pro Logic II®
Sports Pack
Alternative brake caliper finish – black, red, silver
19” alloy wheels – 20-spoke diamond-turned with a Graphite painted finish

Dimensions

Length 4380 mm (172.5”)
Width 1865 mm (73.5”) excluding mirrors; 2025 mm (80.0”) including mirrors
Height (Coupe) 1255 mm (49.5”)
Height (Roadster) 1265 mm (50.0”)
Wheelbase 2600 mm (102.5”)
Front track 1570 mm (62.0”) Rear track 1560 mm (61.5”)
Turning circle (kerb to kerb) 11.1 m (36.5 ft)
Boot capacity (Coupe) 300 litres (10.6 cu ft)
Boot capacity (Roadster) 144 litres (5.0 cu ft)
Fuel tank capacity 80 litres (17.6 UK gal, 21.1 US gal)
Weight (Coupe) 1630 kg (3595 lb)
Weight (Roadster) 1710 kg (3770 lb)

Fuel consumption3 – manual

Litres/100 km (mpg)
Urban 19.9 (14.2)
Extra-urban 10.4 (27.3)
Combined 13.9 (20.4)

Fuel consumption3 – Sportshift5

Litres/100 km (mpg)
Urban 19.4 (14.6)
Extra-urban 9.6 (29.5)
Combined 13.2 (21.4)

Gas mileage (North America only) – manual

City 12 mpg
Highway 19 mpg

Gas mileage (North America only) – Sportshift5

City 13 mpg
Highway 19 mpg

CO2 emissions3

328 g/km – manual
312 g/km – Sportshift5

1. Not available in all markets.
2. Complies with UK Thatcham Category 5 requirements. Excludes subscription. Standard in UK.
3. Data not applicable to North American market.
4. iPod is a trademark of Apple Inc., registered in the USA and other countries.
5. Sportshift trademark is used under licence from Prodrive (Holdings) Ltd.
